N Scale Kadee® Micro-Trains® and Micro-Trains® Line

Product Packaging, Pricing, Door, Truck, & Wheel Set Variations Guide

If you have only recently begun collecting the high-quality 1:160 N Scale products of Kadee® Micro-Trains® and Micro-Trains® Line (MTL), and/or you are simply interested in Micro Trains® product deviations, this packaging, pricing, door, truck, and wheel set variations guide is designed to increase your knowledge of various MTL production characteristics. Compiled by Neville C. Wilson, this guide is readily accessible through the "MTL Variations Guide" buttons, which are located on the page headers that appear above each of our eBay store pages, and under each of our eBay listing descriptions.

Note: Dates of implementation should only be used as guidelines, as car parts and packaging was/is produced in batch runs, with numerous packaging and parts variations for slower moving products.  MSRP is the abbreviation of "Manufacturer's Suggested Retail Price"

Jewel Box Insert Labels (for standard production models)

Kadee® Micro-Trains® paper inserts with black, blue, and green printing, and a factory printed MSRP - November 1972

Kadee® Micro-Trains® paper inserts with black printing and a factory printed MSRP - May 1975

Kadee® Micro-Trains® paper inserts with black printing and no factory printed  MSRP - May 1977

Kadee® Micro-Trains® generic paper inserts for special run models - circa 1980's

Micro-Trains® Line paper inserts with black (and red by the mid-1990's) printing - October 1990

Micro-Trains® Line generic paper inserts for special run models - circa 1990's

Note: All Magne-Matic® knuckle coupler equipped models were packaged with a white paper insert, while Rapido coupler equipped models (circa 1971 - 1977) were packaged with yellow paper inserts.

Jewel Box Lids

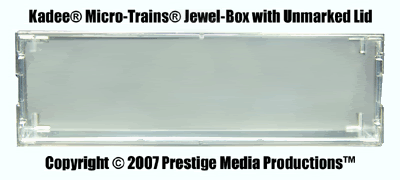

Jewel box lids without an embossed company name - November 1972

Jewel box lids with an embossed Kadee® Micro-Trains® company name - July 1981

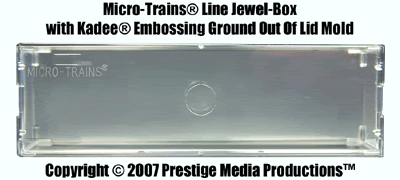

Jewel box lids with embossed Micro-Trains® company name and a blank rectangle (a result of the milling out of the word Kadee®)  above the company's new moniker - March 1991

Short run of jewel box lids with an embossed, rectangular, Micro-Trains® Line logo and a pair of injection molding holes in the jewel box bottoms - September 2001 - Mid-2002

Reappearance of jewel box lids with an embossed Micro-Trains® company name, the word Kadee® milled out, and no holes in the jewel box bottoms - Mid-2002 - February 2008

Embossed, rectangular, Micro-Trains® Line logo on jewel box lids and a pair of injection molding holes in jewel box bottoms - March 2008

Factory Pricing (for standard production models)

Product description and MSRP factory printed in blue (and very rarely in black) on both ends of paper insert labels - November 1972

Product description and MSRP factory printed in black on one end of paper insert labels - May 1975

Product description with no MSRP factory printed in black on one end of paper insert labels - May 1977

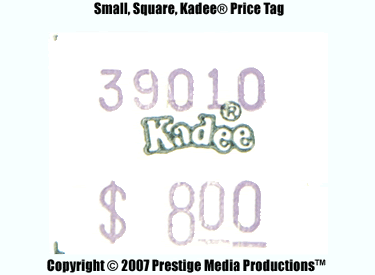

Small, square, white, self adhesive price tags bearing the Kadee® name are affixed to shrink-wrapped sets and the front left side of jewel box bottoms (Note: on occasion, white Kadee® price tags can be found on jewel box lids, or the undersides of jewel box bottoms) - June 1981

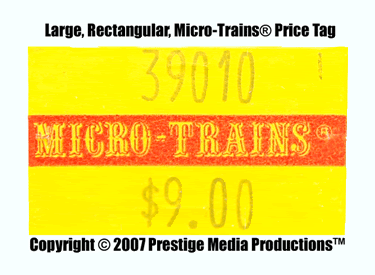

Large, rectangular, yellow, self adhesive price tags bearing the Micro-Trains® name are affixed to shrink-wrapped sets, plastic hinged lid (aka "tackle box") boxed sets, and the front left side of jewel box bottoms (Note: tags are often found secured to both the jewel box lids and the jewel box bottoms) - August 1990

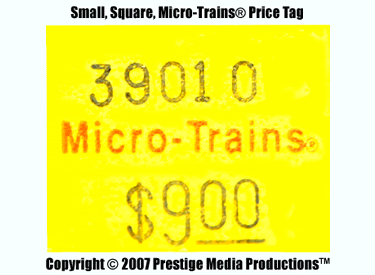

Small, square, yellow, self adhesive price tags bearing the Micro-Trains® name are affixed to the front left side of jewel box bottoms (Note: in the early 1990s, a very small batch of these labels lacked the traditional, red, Micro-Trains® name) - March 1991

No retail pricing on forty model releases - June 2000

Barcode and MSRP are factory printed on bottom of paper insert labels - October 2000

Stock Numbers (for standard production models)

Five digit factory stock numbers - November 1972

Eight digit factory stock numbers - January 2005

Notes: With the exception of Magne-Matic® knuckle coupler equipped model number 23231, the factory stock numbers for Rapido equipped models (circa 1971 - 1977) end in "1" (for five digit stock numbers) or "-1" (in the case of six digit numbers).

The factory stock numbers for blister carded car kits end with the number "9".

Doors (40' steel single-sliding door boxcars)

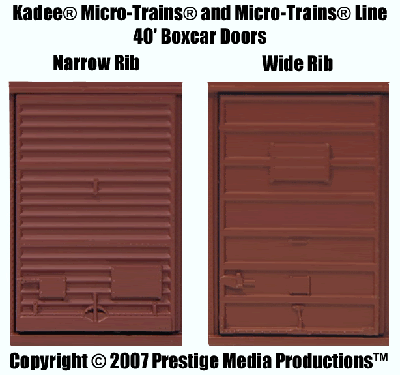

On occasion, plant workers installed the wrong style of sliding-door on 40' boxcar bodies.  In some cases, these door variations can greatly impact the value of a particular Micro-Trains® model.  Collectors often use the abbreviation "NR" (or "n/r") when they are referring to narrow ribbed ("Youngstown") doors, while "the abbreviation "WR" (or "w/r") is used to designate wide rib ("Superior") doors.  Narrow rib doors have fourteen ribs, while wide rib doors display six ribs.

Trucks

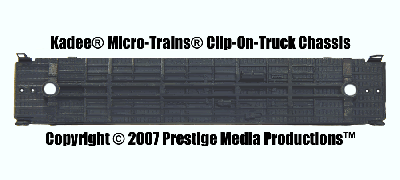

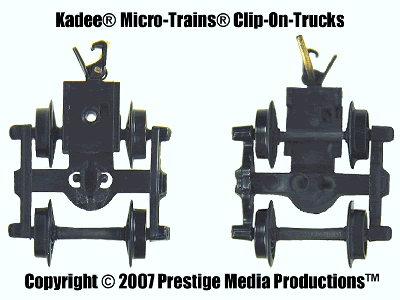

Making a rather short appearance in the marketplace (September 1974 - October 1975) due to their fragility, Clip-On-Trucks, which have a pair of mounting ears rather than conventional bolster pin holes, were an ill conceived innovation that came fitted with Magne-Matic® knuckle, or Rapido style couplers.

Note: Although there are a few other models are listed in various collector guide books, only Kadee® Micro-Trains® 50' Steel Boxcars and 40' Double-Sheathed Wood Single-Door Boxcars with stock numbers 31000 (light brown with white dimensional data), 31118, 31139, 31170, 31463, 31487, 32000 (light brown with white dimensional data), 32076, 32144, 32166, 32499, 32507, 33000 (light brown with white dimensional data), 33089, 33121, 33451, 34000 (light brown with white dimensional data), 34033, 34091, 34105, 34151, 34472, 36000 (light brown with white dimensional data), 36034, 36084, 42080, and 42551, shipped in unmarked plastic jewel boxes, with black, blue, and green printed paper insert labels, and factory printed MSRPs, appear to be legitimate, factory assembled models

With the exception of extended length models (i.e., those with medium and long drawbars) and Rapido coupler equipped versions, the undersides of pre-Micro-Trains® Line production (pre 1991) Archbar, Bettendorf, and Roller Bearing trucks were embossed with the Kadee® name.

Contemporary production (post 1991) Micro-Trains® Line trucks have the Micro-Trains® name embossed on their undersides, or the coupler box cover.

Note: Although they were no longer factory installed on new car releases, the production of individually blister carded, Rapido coupler equipped Bettendorf truck sets (factory stock number 1500) continued well into the early-1990s.

Wheel Sets

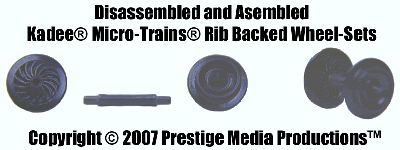

Regular and Special Run models are fitted with three piece (steel axle with a pair of black, injection molded plastic wheels), rib-backed, deep-flanged wheel sets - November 1972

Regular and Special-Run models are fitted with black (except for a few of the contemporary releases that were fitted with brown, green, red, silver, and yellow wheels), one piece, smooth-backed, deep-flanged,  injection molded plastic wheel sets - September 1987

Along with a factory installed set of smooth-backed, deep-flanged wheel sets, an optional set of buyer installed, one piece, smooth-backed, low profile, injection molded plastic wheel sets are packaged with regular production model releases - July 2002

Shipped without an optional, buyer installed, set of smooth-backed, deep-flanged wheel sets, regular production model releases are fitted with factory installed, smooth-backed, low profile, injection molded plastic wheel-sets - September 2005

Along with a factory installed set of smooth-backed, low profile wheel sets, an optional set of buyer installed, smooth-backed, deep-flanged wheel sets is packaged with regular production model releases - October 2005 - December 2006

Along with a factory installed set of smooth-backed, deep-flanged wheel sets, an optional set of buyer installed, one piece, smooth-backed, low profile, injection molded plastic wheel sets is packaged with regular production model releases - January 2006 - July 2007

Low profile, injection molded plastic wheel sets are no longer packaged with, or factory installed on regular production model releases - August 2007

Note: While deep-flanged wheel sets were never officially named by their manufacturer, model train operators have bestowed the nickname "pizza cutter" upon these first (second, if rib-backed wheel sets are taken into account) generation products.

Proper Micro-Trains® Car Body and Chassis Assembly and Stirrup Step Orientation

Turned upside down, with the brake wheel facing right, Kadee® Micro-Trains® and/or Micro-Trains® Line models (except for cabooses, which are listed below) that are fitted with chemically blackened, die-cast metal chassis are properly assembled when the smaller of the two cylindrically shaped appendages (Canister like shapes, the larger one represents an auxiliary air reservoir and the smaller one a brake cylinder) that are cast into the bottom of the metal frame appear above the pair of long, horizontal center lines that run between the two trucks.  The three or four links of chain that have been cast next to the small cylinder should face the right side (the brake wheel end) of the car.

Turned upside down, with the offset cupola positioned toward your left and the long roof section facing right, Kadee® Micro-Trains® and/or Micro-Trains® Line wood sheathed caboose models that are fitted with chemically blackened, die-cast metal chassis are properly assembled when the smaller of two cylindrically shaped appendages (Canister like shapes, the larger one represents an auxiliary air reservoir and the smaller one a brake cylinder) that are cast into the bottom of the metal frame appear below the pair of long, horizontal lines that run between the two trucks.  The four links of chain that have been cast next to the small cylinder should face the left side (the cupola end) of the car.

Turned upside down, with the offset cupola positioned toward your left and the long roof section facing right, Micro-Trains® Line steel cabooses are properly assembled when the square box and the smaller of two cylindrically shaped appendages (Canister like shapes, the larger one represents an auxiliary air reservoir and the smaller one a brake cylinder) that are cast into the bottom of the frame appear above the pair of long, horizontal lines that run between the two trucks.  The four links of chain that have been cast next to the small cylinder should face the right side (the long roof end) of the car.

Injection molded plastic stirrup step moldings are properly attached to Kadee® Micro-Trains® and/or Micro-Trains® Line car chassis when the half-round notches (half circle shaped cutouts that are positioned on one edge of each stirrup step molding) face outward (i.e., toward the couplers).
