SUPER DYNO Features

The Superlight System for Motorized Bicycles is NOW HERE!

SUPER DyNO Mini-Gen

We are proud to announce the introduction of a "SUPER DYNO SYSTEM" now available after many months of development and thorough testing. These are intended for all motorized bicycles with 2 cycle China made engines. This product has been undergoing test for the past 2 years (on and off) and is now available for your motorized bicycle.

What is The SUPER DYNO System About?

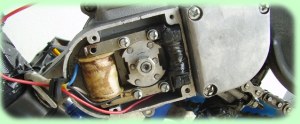

The SUPER DYNO is a 6 volt LIGHTING SYSTEM which consist of a small generator installed in the magneto case of 2 cycle motorized bicycle engines. This generator is called the MINI-GEN, and produces electricity to run your lights without affecting your engine's magneto or ignition system.

Many owners of these motorized bikes are running lights from the engine magneto using the white wire, and this will support lighting up to about 3 watts total or less. Anything over a certain amount of current draw on the engine's white wire will cause the bike to experience hard start or no start. A CDI (ignition coil) that's not in excellent condition, or within a certain tolerance could aggravate this problem even more.

If you want completely reliable lighting that's independant of your bike's ignition system and supports between 5 and 10 watts of lighting, then our MINI-GEN is the way to go. The Mini-Gen produces a nominal 6.5 volts ac @ approx. 850 rpms, and can produce up to about 13 volts ac at 3000 rpms. Most light bulbs will run off ac as well as dc current.

The Mini-Gen can be used along with the complete SUPER DYNO Lighting System, or with just a headlight & switch, or even just connected directly to a headlight for "constant-light-on" condition.

Why use a 6 volt bulb and not 12 volts?
Because a 12 volt bulb would not run very bright during the most common engine speed circumstances; which could be between 700 & 2000 rpm. A 6 volt bulb up to about 5 watts is recommended. A little extra voltage (between 7 & 9v) at high speeds will result in a brighter 6 volt light. The over voltage could possibly shorten the life span of the bulb, but not by much.

Features of the SUPER DYNO Complete Lighting System

The SUPER DYNO Mini-Charger

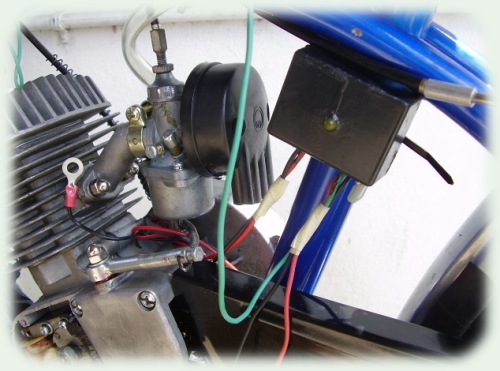

The Mini-Charger is a small electronic battery charging device which is less than 2 square inches in size. This device converts the ac voltage of the Mini-Gen to dc voltage to charge up a 6 volt battery.

Features of the Mini-Charger includes a sealed and encapsulated weather resistant circuit with 5 wires; one for engine ground, one for voltage from the Mini-Gen, one for the light switch and a pair for the battery connection. A circuit protection fuse is included and a small led light on the Mini-Charger case lights up to indicate a working system.
SUPER DYNO Rechargeable Battery Pack

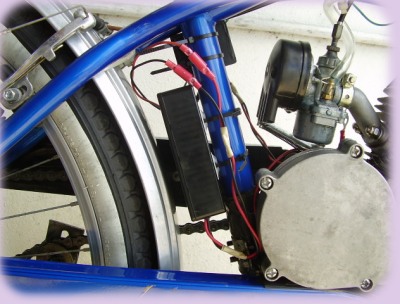

The 6 volt battery pack provides voltage for 6 volt lighting, and receives charging from the Mini-Charger. The battery pack presently used in SUPER DYNO Complete Lighting System is a SLA (sealed lead acid) 6V 1.3A battery incased in a weather resistant plastic case.

This SLA recharbeable battery will power the headlight and tail light on motorized bikes as well as regular bicycles. The 2 cycle motorized bike however, can be fitted with the Mini-Gen & Mini-Charger which will recharge a drained battery, and keep a charged battery well maintained without over-charge damage.

Battery will recharge from 65% capacity to full charge in about 2 to 3 hours with lights off, and remain charged up with lights on. A 1.3 amp SLA battery will run lights for about 2 hours without going dim (with engine off). If battery happens to go weak with lights on, engine will still support enough lighting for a safe ride home.

Other Features of the SUPER DYNO Complete
The three main features of the SUPER DYNO Complete Lighting System have already been discussed (Mini-Gen, Mini-Charger & Battery Pack). The other items that make up the lighting system include a Weather Resistant Light Switch, a Modified 6V Bell Headlight (upgraded to metal screw base & heavier gauge wire), a bell tail light and heavy duty metal front & rear light brackets.

CLICK ON THE LINKS BELOW TO CHECK ALL AVAILABLE SUPER DYNO LIGHTING PARTS

See Our Other SUPER DYNO Lighting Accessories

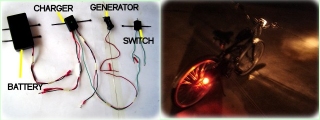

See Also our SUPER DYNO Complete Lighting System Check out our complete SUPER DYNO Motorized Bicycle Lighting System. This system includes a "Mini-Generator" which produces electricity, a "Mini-Charger" (battery charger), a rechargeable 1.3A sla battery, a weather resistant light switch, revised headlight (metal socket & heavier gauge wire), tail light and heavy duty light brackets.
See Also our SUPER DYNO Mini-Gen With Light Switch & Front and Rear Lights This setup includes a Mini-Gen, a weather resistant light switch and original 3W headlight and tail light.
See Also our SUPER DYNO Mini-Gen With Weather Resistant Light Switch and Front LightGet this SUPER DYNO Mini-Gen with Weather Resistant Light Switch and original 3W headlight to produce electricity for your bike lighting without interfering with your bike's ignition system.
See Also our SUPER DYNO Mini-Gen With Weather Resistant Light SwitchGet this SUPER DYNO Mini-Gen with Weather Resistant Light Switch to produce electricity for your bike lighting without interfering with your bike's ignition system.
See Also our SUPER DYNO Stand Alone Mini-GenGet this SUPER DYNO Mini-Gen to produce electricity for your motorized bike lighting without interfering with your bike's ignition system. Use your own lighting and light switch
See Also our SUPER DYNO Weather Resistant Light SwitchThis SUPER DYNO Weather Resistant Light Switch is ideal for motorized bikes and bicycle lighting control.
